Rs. 967,916

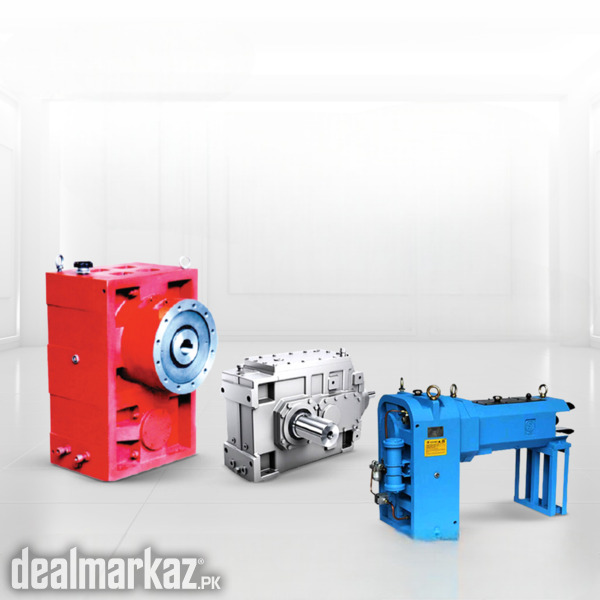

GEARBOX SZ-45 HORIZONTAL PVC

DESCRIPTION

Horizontal Gearbox SZ-45 for conical twin-screw extruders (PVC, profile, pelletizing)

Technical Specifications:
Model: SZ-45 Horizontal Gearbox
Input Power: 18.5 kW (≈24.8 HP)
Maximum Input Speed: 1500 rpm
Maximum Output Speed: 44.8 rpm
Output Torque: 1972 N·m per shaft
Gearing Type: Helical gear with small cone angle
Lubrication: Forced circulating oil cooling system
Application: Matched to 45/90 mm screw extruder (SJSZ45/90)

Machine Features:
High-Strength Gears – Alloy steel, carburized, quenched, ground, HRC58-62
Robust Housing – Thick HT250 cast iron for vibration damping and heat dissipation
Thrust Bearing System – Self-aligning roller bearings for large axial load
Sealing System – Double-lipped oil seals to prevent leakage
Industrial Use – PVC pipes, profiles, WPC products
Durable Construction – Designed for long-term continuous extrusion operation
