Rs. 13,388,750

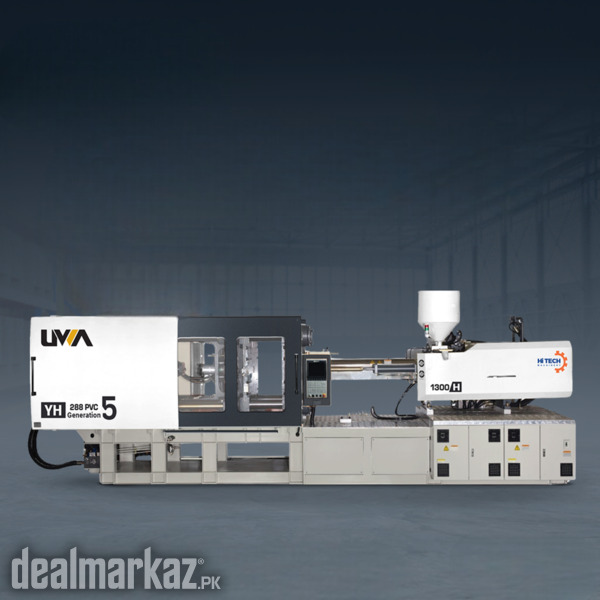

UWA YH5 288 PVC Injection Molding Machine

DESCRIPTION

The UWA YH5-288 PVC is a specialized injection molding machine engineered for processing rigid PVC materials used in pipe fittings and construction applications. It features a 288-ton clamping unit designed to ensure stable molding performance for heat-sensitive PVC production.

Technical Specifications
• Clamping Force: 2880 kN (288 Tons)
• Screw Diameter Options: 55 / 60 / 64 mm
• Shot Weight (PVC/PS): 583 / 694 / 790 g
• Space Between Tie Bars: 610 × 580 mm
• Max Mold Opening Stroke: 550 mm
• Mold Height (Max/Min): 580 / 220 mm
• System Pressure: 17.5 MPa
• Ejection Stroke: 155 mm

Machine Features
• PVC-dedicated screw and barrel design to reduce material degradation during processing.
• Barrel air-cooling system for controlled temperature management of PVC resin.
• High-torque drive configuration suitable for rigid PVC applications.
• Servo motor system supporting energy-efficient machine operation.
• Linear guide rail injection structure for improved stability and accuracy.
• Self-lubricating sleeves designed for long service life and reduced maintenance
