Rs. 24,494,993

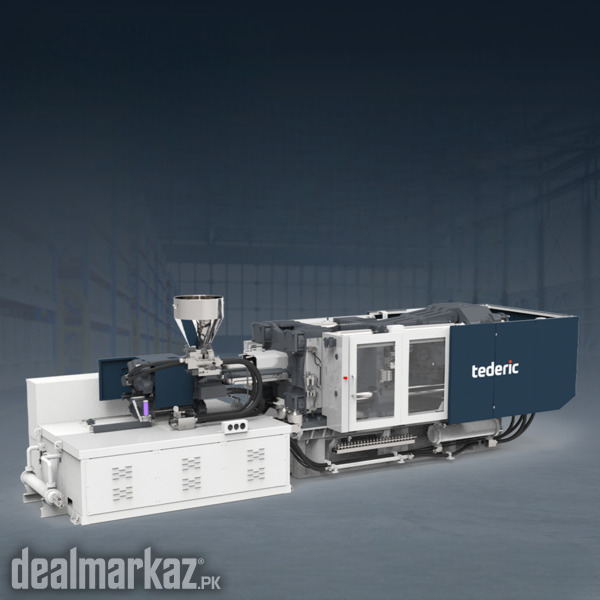

High-Speed Tederic NEO·T 370 Injection Molding Machine

DESCRIPTION

The Tederic NEO·T 370 is a high-speed servo-hydraulic injection molding machine designed for thin-wall packaging applications such as food containers and lids. It features a toggle clamping system with a fast-injection (fi) unit optimized for high-velocity production.

Technical Specifications
• Clamping Force: 3700 kN (370 Tons) • Screw Diameter Options: 45 / 50 / 55 mm
• Shot Weight (PS): 321 / 396 / 480 g • Injection Pressure: 240 / 194 / 161 MPa
• Tie Bar Spacing: 730 × 730 mm • Machine Weight: 14.5 – 15.5 Tons
• Platen Dimensions: 1050 × 1050 mm • Clamping Stroke: 680 mm
• Mold Height (Max/Min): 730 / 280 mm • Ejector Stroke: 200 mm
• Ejector Force: 110 kN • Pump Motor Power: 45 – 55 kW
• Heating Power: 22 – 28 kW • Oil Tank Capacity: 700 Liters

Machine Features
• Fast-injection unit with accumulator system designed for high-speed thin-wall molding.
• Servo-hydraulic drive enables simultaneous machine movements for reduced cycle time.
• Five-point toggle mechanism supports precise mold protection and faster operation.
• High-rigidity platen structure suited for high-pressure packaging applications.
