Rs. 13,086,884

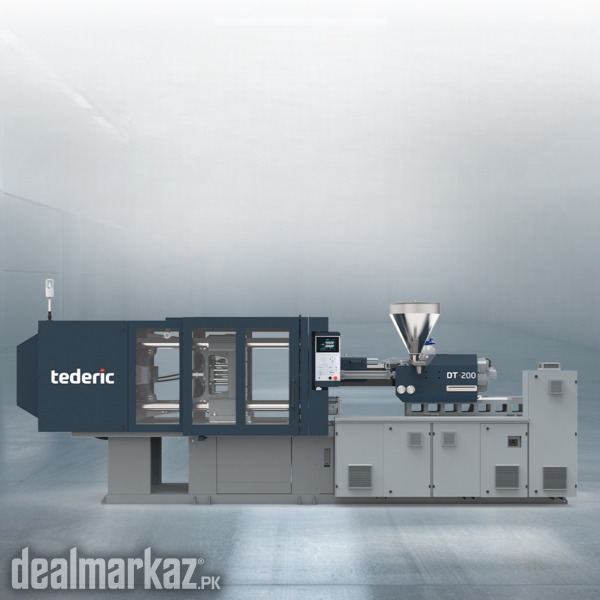

Tederic Electric D200-1100 Injection Molding Machine – PET Series

DESCRIPTION

The Tederic D200-i1100 PET is a specialized electric-driven injection molding machine developed for pet preform production. It combines a 200-ton clamping unit with a high-capacity i1100 injection unit to deliver precision, consistency, and energy-efficient operation.

Technical Specifications
• Clamping Force: 2000 kN (200 Tons) • Screw Diameter Options: 45 / 50 / 55 mm
• Shot Weight (PET): 326 / 402 / 486 g • Injection Pressure: 227 / 184 / 152 MPa
• Screw L/D Ratio: 24:1 / 22:1 / 20:1 • Overall Dimensions (L×W×H): 5.8 × 1.6 × 2.2 m
• Tie Bar Spacing: 530 × 530 mm • Platen Dimensions: 800 × 800 mm
• Clamping Stroke: 540 mm • Mold Height (Max/Min): 560 / 220 mm
• Ejector Stroke: 150 mm • Ejector Force: 67 kN
• Heating Power: 15.6 – 19 kW • Machine Weight: 7.2 – 7.8 Tons

Machine Features
• Electric servo motor system designed for precision PET preform molding.
• Fast injection response suitable for high-accuracy production cycles.
• Dedicated motors enable simultaneous machine movements for improved productivity.
• PET-optimized screw configuration supports stable processing performance.
