Rs. 25,969,227

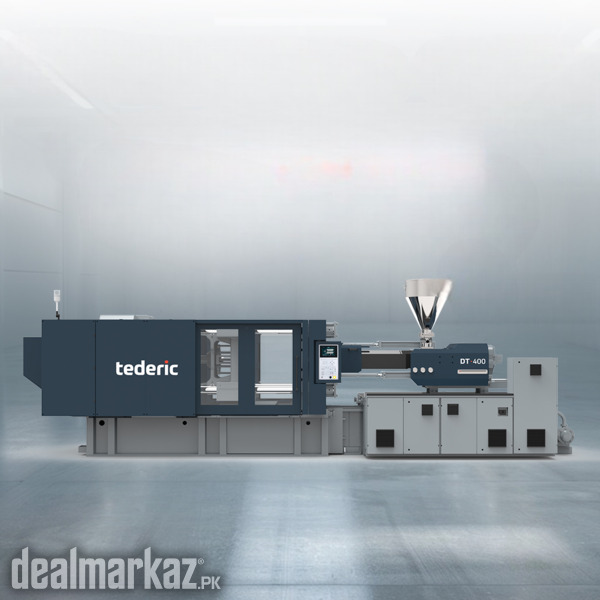

Tedric DT350-4800T PET Series Injection Molding Machine

DESCRIPTION

The Tederic DT350-i4800 PET is a 350-ton servo-hydraulic injection molding machine designed for high-volume PET preform production with a large-capacity i4800 injection unit.

Technical Specifications
Clamping Force: 350 Tons (3500 kN)
Tie Bar Spacing: 730 × 730 mm ● Platen Size: 1050 × 1050 mm
Clamping Stroke: 680 mm ● Mold Height: 280 – 730 mm
Ejector Stroke / Force: 200 mm / 110 kN ● Screw Diameter: 80 / 85 / 90 mm
Shot Weight (PET): 1880 – 2379 g ● Injection Pressure: 155 – 196 MPa
Screw L/D Ratio: 22:1 – 25:1 (PET Special)
Pump Motor Power: 45 – 55 kW ● Heating Power: 38 – 45 kW
Oil Tank Capacity: 700 L ● Machine Weight: Approx. 14.5 – 15.5 Tons

Machine Features
PET Specialized Screw — Ensures uniform melting and high preform transparency
High-Capacity Injection Unit — Suitable for large PET shots and multi-cavity molds
Servo-Hydraulic Drive — Energy-efficient with precise pressure control
Reinforced Toggle System — High rigidity for continuous PET production cycles
High-Torque Plasticizing Motor — Stable processing of dense PET resin
Smart Touch Controller — 15-inch display with real-time monitoring
