Contact for price

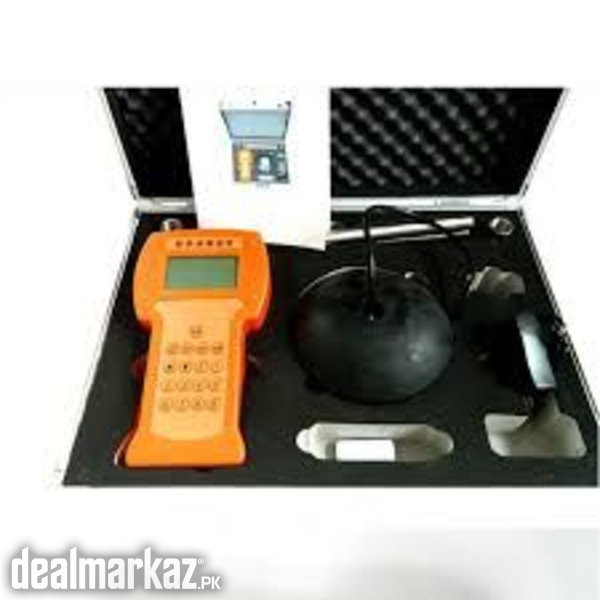

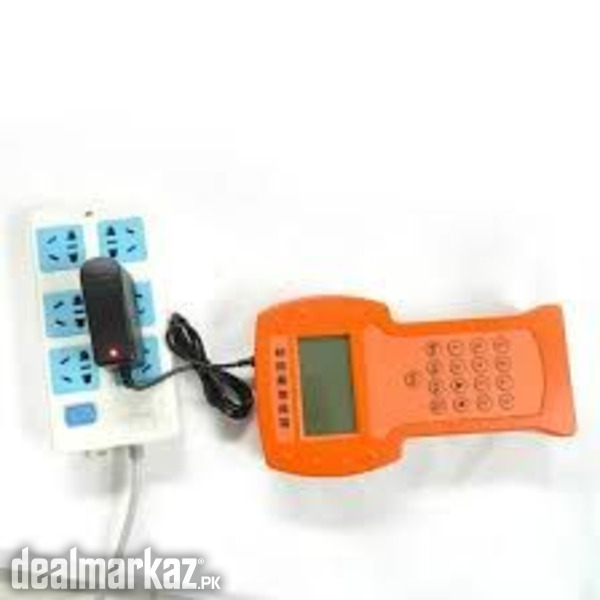

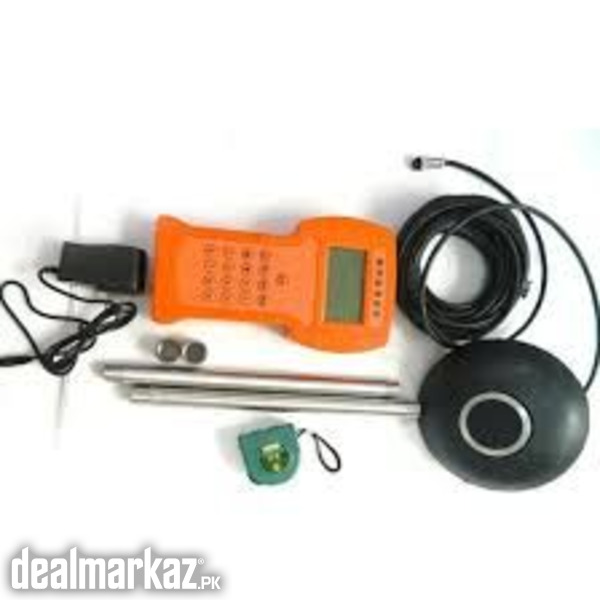

Ultrasonic Bathymeter Water Depth Measurement

DESCRIPTION

Ultrasonic Bathymeter Depth Water Measurement Depth Finder 200kHz Ultrasonic

Product Description

Functional features

1. Outside (inside) installation of medium and small ships, 10 meters of cables

2. It is mainly used for locating and measuring water depth on sea, river and lake.

3. Excellent high speed operation at 55 knots (63MPH)

4. Self-stabilizing measurement technology and fast tracking technology can reflect real measurement results in real time

4. High precision clock, annual error of 3PPM

6. Super capacity SD storage, maximum 32GB storage capacity, FAT16/FAT32 file system adaptive

7. Automatically store files in CSV format according to the date, and store file names according to the date for convenient query

Parameter

Range: 120 Meter, 200 meters, 100 meters, 300 meters and 500 meters
Work 200 ~ 2000 KHZ
Blind area Automatic blind spot detection adjustment
The keyboard Digital keys
Minimum display resolution 1 mm
The host material ABS engineering plastics
The host weight 800 g
The scene is set Through the sensor button to complete
The sensor Copper or stainless steel
Working voltage Built-in battery, external charger
The sensor 400 ~ 800 g
power Transmitting power level 32, automatic gain
Sensor cable Diameter 5 ~ 10MMx 10M
precision 0.3% x range calibration Factory calibration, field calibration
Working temperature ≤80 % RH without condensation
Storage temperature: -40°C ~ 70°C Storage temperature ≤80% RH or less without condensation
Detection mode: 15HZ/S
Output, storage RS232/RS485 port, SD card reads measurement data directly to generate EXCEL file (timing or manual storage)
