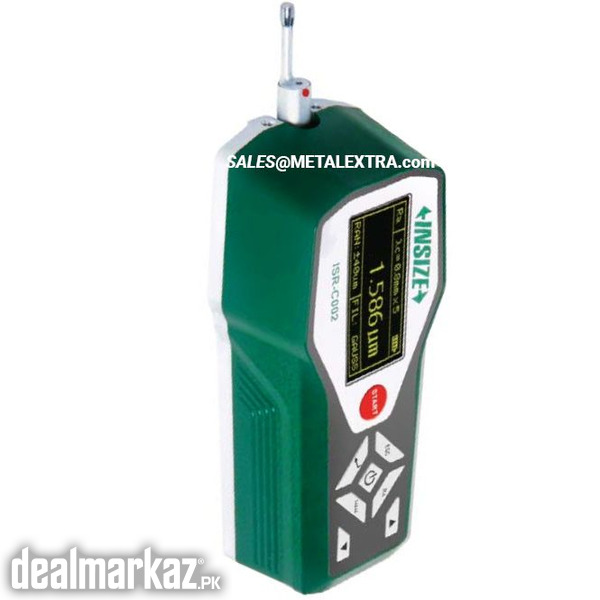

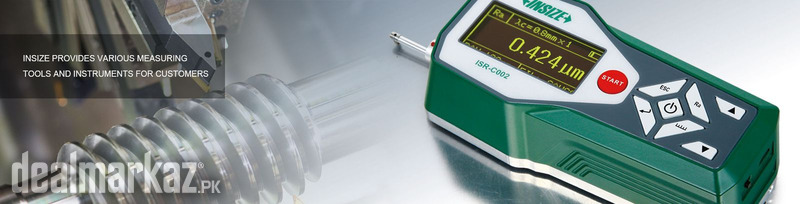

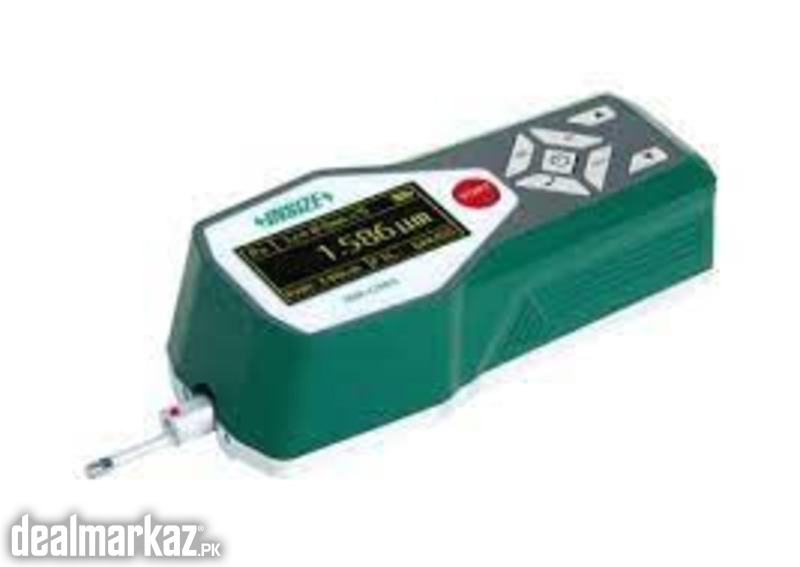

"INSIZE" (USA) Handheld Surface Roughness Tester Model ISR-C002

Features

1. BLUETOOTH
2. DATA OUTPUT
3. CAN BE OPERATED BY MOBILE PHONES OR COMPUTERS
4. BUILT IN RECHARGEABLE BATTERY

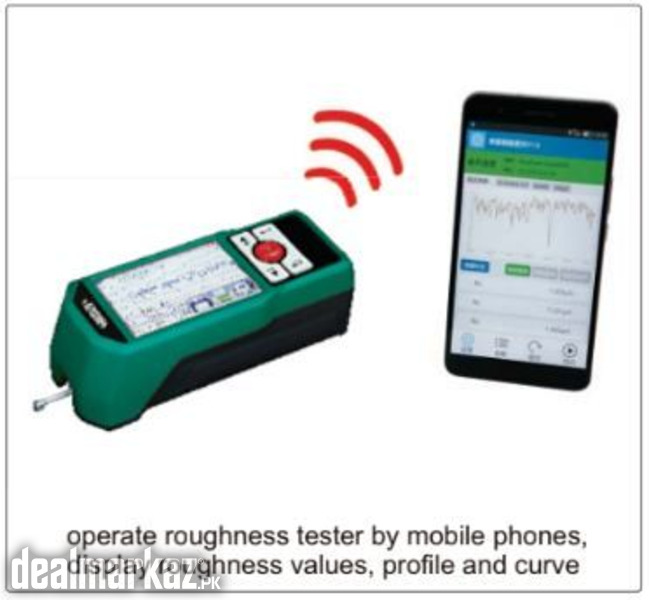

Roughness Tester can be operated by Mobile Phones (only Android System) or Computers

Data can be sent to Excel by connecting to computers via Bluetooth or SPC Cable

Support Bluetooth printer

21 Roughness Parameters

Display Roughness value, profile & curve

Memory of Maximum 100 Results

Automatic Power Off

Specification

Parameters: Ra, Rz, Rq, Rv, Rp, RS, R3z, R3y, Rt, Rz (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry (JIS), Rmax

Range: 320um (-160um-160um)

Accuracy: ± 10%

Resolution (Ra) : 0.001um

Probe Specification
Type: Inductive
Stylus radius/angle: 5um/90°
Stylus material: Diamond

Measuring Fore: 4mN
'
Measuring unit: um/uin

Cut Off: 0.25/0.8/2.5mm

Number of Cut Off: 1 to 5

Moving Speed: 0.5mm/s, 1mm/s

Memory: 100 measurement results

Output: Bluetooth and USB

Power: Built-in Rechargeable battery

Weight: 400g

Accessories Included
1.No. Main Unit
1.No. Standard Probe
1.No. Calibration block & support
1.No. Adjustable stand
1.No. Probe Cover
1.No. Software & USB Cable
1.No. AC/DC Adapter
