Rs. 39,375,431

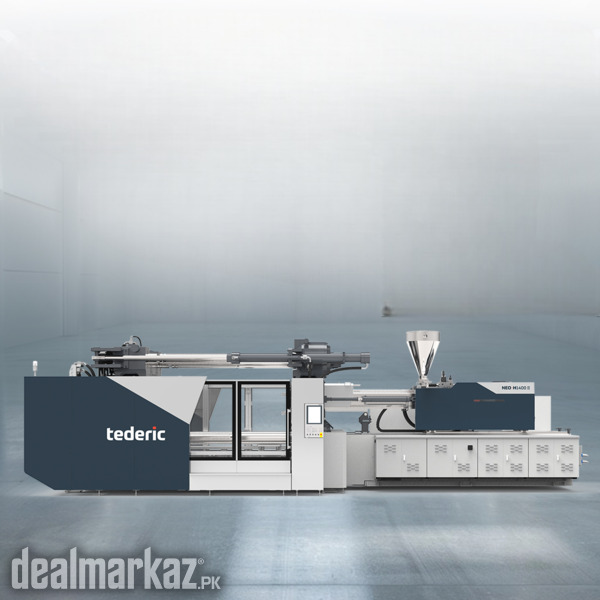

Tedric NEO HII.550 – i3800 Two Platen Series Injection Molding Machine

DESCRIPTION

The Tederic NEO·HII 550-i3800 is a high-precision two-platen servo-hydraulic injection molding machine designed for large molds and deep-cavity applications.

Technical Specifications
Clamping Force: 550 Tons (5500 kN)
Machine Type: Two-Platen Servo-Hydraulic
Injection Unit: i3800 ● Screw Diameter: 65 / 70 / 75 mm
Shot Weight (PS): 935 – 1245 g ● Injection Pressure: 168 – 224 MPa
Tie Bar Spacing: 930 × 830 mm ● Opening Stroke: 1150 mm
Mold Height: 350 – 1100 mm ● Ejector Stroke / Force: 250 mm / 160 kN
Drive System: High-Response Servo Hydraulic
Control System: KEBA 15-inch Touch Screen

Machine Features
Two-Platen Structure — Compact design saves floor space while supporting large molds
Non-Contact Tie Bars — Reduced friction and cleaner operation environment
High-Precision Clamping — Four hydraulic cylinders ensure uniform mold pressure
Linear Guide Support — Improves platen parallelism and mold protection
Energy-Efficient Servo System — Stable performance with reduced power consumption
Large Opening Stroke — Ideal for deep-cavity and automotive components
