Rs. 25,827,067

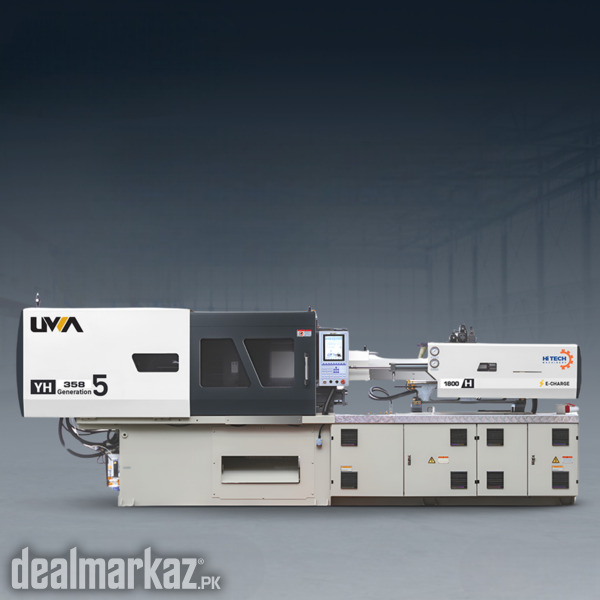

UWA YH-II-358/1800H PC Servo Injection Molding Machine

DESCRIPTION

The UWA YH-II-358/1800 PC is a high-performance servo-hydraulic injection molding machine designed for Polycarbonate (PC) applications, featuring a 358-ton clamping force and a 1800H injection unit for precise high-pressure molding.

Technical Specifications
• Clamping Force: 3580 kN (358 Tons) • Screw Diameter Options: 60 / 65 / 70 mm
• Shot Weight (PS): 1058 / 1241 / 1440 g • Ejector Force: 124 kN
• Theoretical Shot Volume: 1159 / 1360 / 1577 cc • Injection Pressure: 204 / 174 / 150 MPa
• Screw L/D Ratio: 22.8 / 21 / 19.5 • Space Between Tie Bars: 730 × 680 mm
• Platen Dimensions: 1050 × 1000 mm • Max Mold Opening Stroke: 660 mm
• Mold Height (Max/Min): 700 / 250 mm • Ejector Stroke: 200 mm

Machine Features
• PC-specialized screw and barrel for high-viscosity, high-temperature resin processing.
• Balanced double-cylinder injection for stable movement and precise shot control.
• High-rigidity box-type platen to minimize deflection under high clamping forces.
• Double servo drive system offering high response and energy savings up to 70%.
• High injection pressure suitable for deep-cavity or thin-wall PC parts.
• Efficient heating and oil capacity tailored for consistent production quality.
