Contact for price

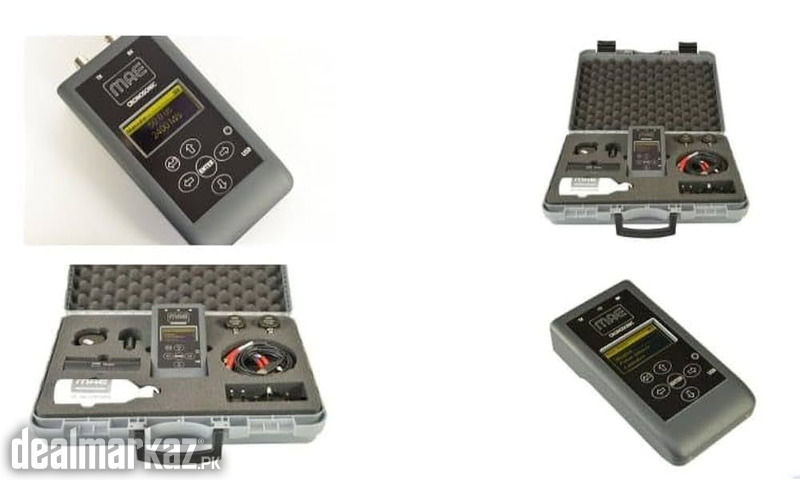

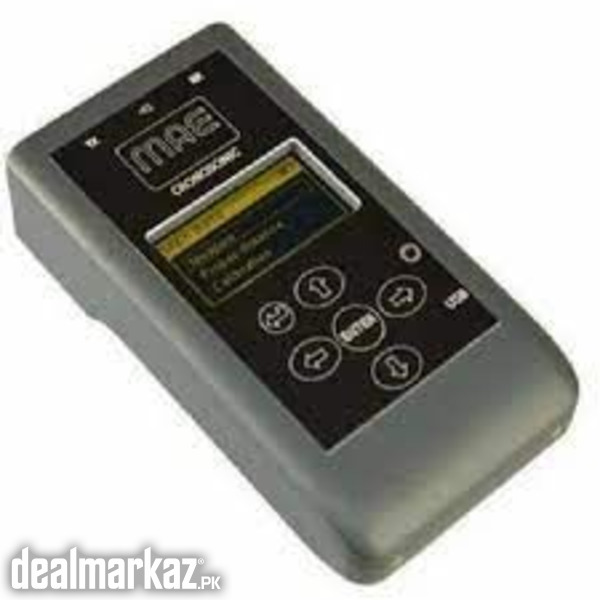

Controls (Italy) Ultrasonic Pulse Velocity Tester

DESCRIPTION

The Ultrasonic Time of Flight Meter, known also as the Ultrasonic Pulse Velocity Tester, is used for Quality Control and inspection of concrete. It measures the transit time of ultrasonic pulses through concrete for inspection of new and old structures, slabs, columns, walls, fire damaged areas, precast and prestressed beams, cylinders and other concrete forms. Combined with an oscilloscope can identify honey combs, voids, cracks and other non-homogeneous conditions in concrete.

Features
For the non-destructive evaluation of concrete homogeneity, determination of Dynamic Elastic Modulus, Dynamic Poisson coefficient, concrete resistivity (combined with other determinations).
Compliant to EN 12504-4, ASTM C597-09.
Ergonomic, compact and portable.
Battery operated.
Large LCD monochromatic display (128 x 64 pixel).
Internal memory for storing up to 250 measurements.
Data export format: .csv, .txt.
Digital calibration using PVC probe (included).
Multi-voltage and multi-frequency battery charger with interchangeable plugs.
Polypropylene rigid case for transport of the instrument and accessories.

Specifications
Microprocessor incorporated.
Battery operated up to 6h by internal rechargeable battery pack (Li-ion, 3.7 V, 1800 mAh) and External charger.
Usable also during recharging time (about 2h if not in use).
USB output (type mini -B) to connect power charger and PC.
Connectable to oscilloscope.
Analysis of compression waves P and Time of fly and transmission velocity waves.
Pulse rate from 1 to 8 per second.
Resolution 0.1 microseconds and accuracy of 2%.
N.2 55kHz Transducers (diam 30mm, h 50mm).
3m cable, BNC connector for connecting transducers.
Frequency range 20 to 150 kHz.
Environmental working conditions: 0 – 40°C, 0-90% RH.
Weight of the tester 0.3 kg, complete set 3 kg.

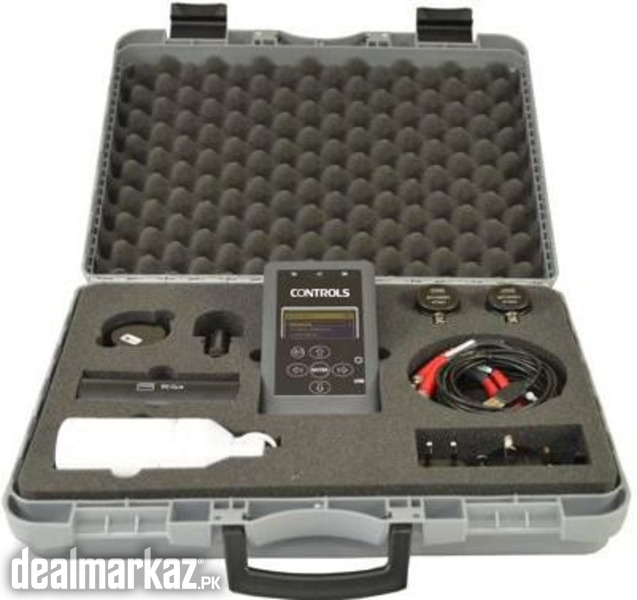

Included in the rigid case

Ultrasonic pulse velocity tester.
Power charger to recharge its internal battery.
USB cable for PC connection.
USB key with documents and CSreader software for data management
BNC cables to connect probes to the instrument.
n° 2 ultrasonic probes (transducers).
PVC sample (120mmx40mm) with known crossing speed for instrument calibration.
250gr gel for fixing probes to structural element.
CSReader data storage software.
