DESCRIPTION

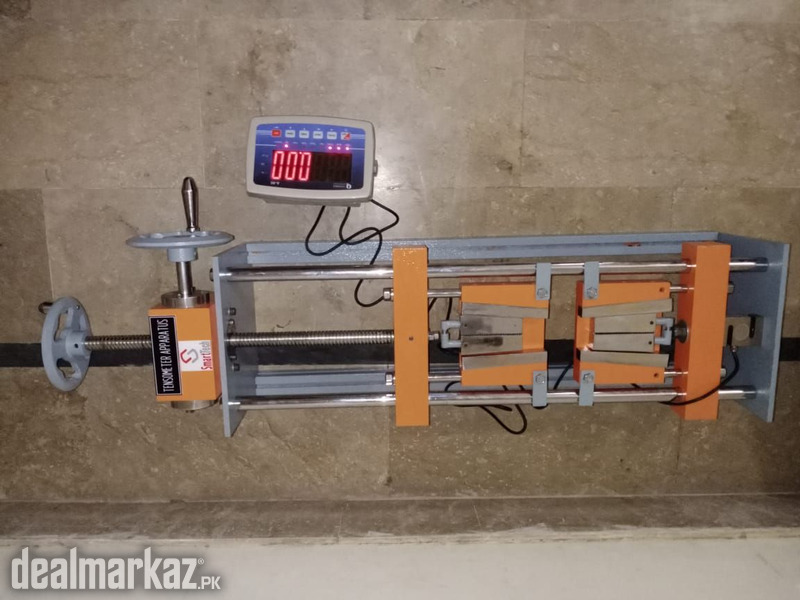

Tenso Meter Apparatus
A small Scale Machine that fits on a bench top and allows simple tensile tests of metal specimens up to a maximum load of 20 kn. This machine is a good partner to smarttech's Torsion Testing Machine.

Technical Details
The load application mechanism includes a hand-driven worm and wheel gearbox, driving a lead screw with approximately 400 mm of travel. The mechanism uses ball races and self -aligning ball thrust races in the direction of loading. These low friction bearings, with the large hand wheel allow the user to apply maximum load with minimum effort. They also give smooth and progressive operation, necessary to help the user apply a steady strain rate for best results.

The unit also has a smaller "quick advance" hand wheel that allows the user to set the distance between the chucks simply and quickly before each test. The load measuring mechanism is a strain -gauged load cell that connects to a microprocessor-controlled digital display
