Rs. 34,652,769

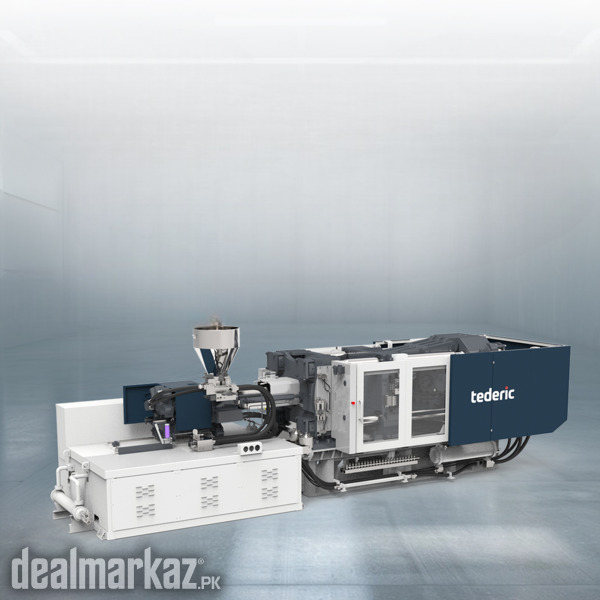

Tedric NEO T490-fi1550 High-Speed Series Injection Molding Machine

DESCRIPTION

The Tederic NEO·T490-fi1550 is a 490-ton high-speed servo-hydraulic injection molding machine designed for thin-wall packaging and fast-cycle production using a specialized fast-injection unit.

Technical Specifications
Clamping Force: 490 Tons (4900 kN) ● Oil Tank Capacity: 850 L
Injection Unit: fi1550 High-Speed (Fast Injection)
Screw Diameter: 55 / 60 / 65 mm ● Shot Weight (PS): 552 – 771 g
Injection Pressure: 165 – 231 MPa ● Injection Speed: 300+ mm/s
Tie Bar Spacing: 830 × 830 mm ● Platen Size: 1180 × 1180 mm
Clamping Stroke: 780 mm ● Mold Height: 300 – 850 mm
Ejector Stroke / Force: 200 mm / 110 kN
Pump Motor Power: 75 – 90 kW ● Heating Power: 28 – 35 kW

Machine Features
Fast Injection System — Accumulator-assisted injection for ultra-high speed molding cycles
High-Speed Production — Ideal for thin-wall packaging and rapid manufacturing
Servo-Hydraulic Drive — Energy saving with precise motion and pressure control
Parallel Movements — Simultaneous mold motion and plasticizing reduce cycle time
Reinforced Toggle Structure — High rigidity for stable high-pressure operation
Advanced Touch Controller — 15-inch control system with ultra-fast response
