Rs. 43,574,430

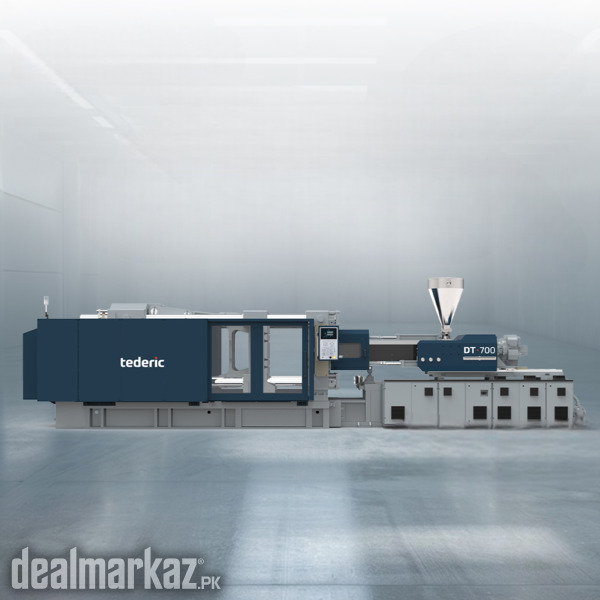

Tedric DT.700 – i5800 Injection Molding Machine

DESCRIPTION

The Tederic DT 700-i5800 is a heavy-duty servo-hydraulic toggle injection molding machine designed for large industrial components requiring high shot capacity and stable clamping performance.

Technical Specifications
Clamping Force: 700 Tons (7000 kN)
Machine Type: Servo-Hydraulic Toggle
Injection Unit: i5800 ● Screw Diameter: 85 / 90 / 100 mm
Shot Weight (PS): 2442 – 3381 g ● Injection Pressure: 168 – 224 MPa
Tie Bar Spacing: 960 × 960 mm ● Opening Stroke: 980 mm
Mold Height: 400 – 980 mm ● Ejector Stroke: 260 mm
Drive System: Energy-Saving Servo Hydraulic
Control System: 15-inch Professional Touch Screen

Machine Features
Five-Point Toggle System — Ensures uniform clamping force and reduced platen deformation
Box-Type Platen Design — High rigidity structure for heavy mold applications
Linear Guide Injection Unit — Improves positioning accuracy and reduces friction
Energy-Efficient Servo Drive — Saves power while maintaining stable performance
High-Speed Response Control — Fast pressure build-up for consistent molding cycles
Large Mold Capacity — Suitable for automotive, packaging, and construction parts
