Rs. 6,982,214

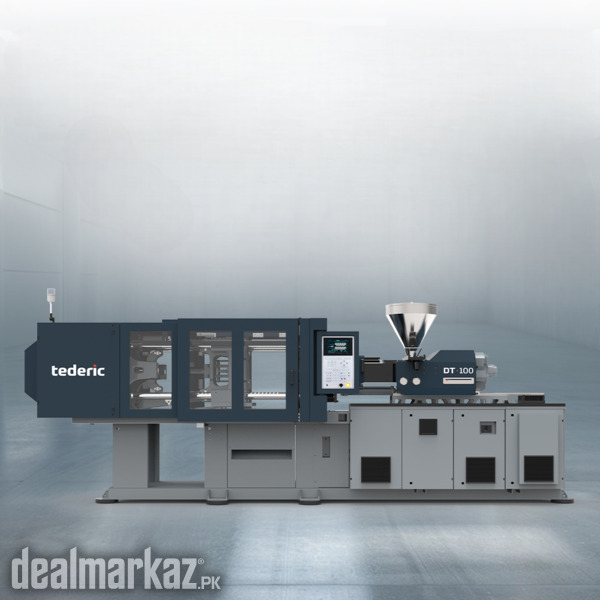

Tedric DT 100-i380 100T Injection Molding Machine

DESCRIPTION

Servo-driven 100-ton injection molding machine with i380 injection unit, 35–42 mm screws, ideal for precision plastic parts production.

Technical Specifications:
Clamping Force: 100 Tons / 1000 kN
Tie Bar Space: 360 × 360 mm
Clamping / Ejector Stroke: 360 mm
Max - Min Mold Height: 380 mm - 150 mm
Screw Diameter : 35 - 38 - 42 mm (A/B/C)
Injection Weight: 153 - 181 - 221 g
Injection Pressure: 158 - 193 - 228 MPa
Pump Motor / Heating: 13–16 kW / 6.6–8.2 kW
Oil Tank / Max Pressure: 120 - 150 L / 17.5 MPa

Machine Features:
V-Shaped Five-Point Toggle – Heavy-duty, reduces deflection
High Rigidity Platens – T-slot mold mounting, reduces stress
Fast Response – Servo reaches max pressure in 28 ms
External Bearing / Toggle Lubrication – Ensures stable long-term operation
Energy Efficient – Servo-hydraulic system saves 30–80% energy
Industrial Use – Precision molding for plastic parts
