Rs. 14,078,615

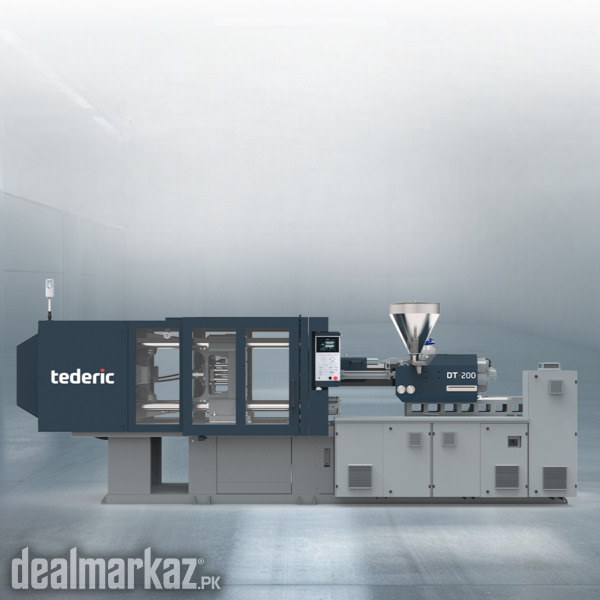

Tedric D200-1500T PET Series Injection Molding Machine

DESCRIPTION

Tederic D200-i1500 PET is a 200-ton servo-hydraulic injection molding machine designed for high-output PET preform production, featuring a large-capacity injection unit and PET-optimized screw system for stable and efficient manufacturing.

Technical Specifications:
Clamping Force: 200 Tons (2000 kN)
Tie Bar Spacing: 530 × 530 mm ● Platen Size: 800 × 800 mm
Clamping Stroke: 540 mm ● Mold Height: 220 – 560 mm
Ejector Stroke / Force: 150 mm / 67 kN
Screw Diameter: 50 / 55 / 60 mm ● Shot Weight (PET): 536 – 773 g
Injection Pressure: 156 – 224 MPa ● Pump Motor Power: 25 – 30 kW
Screw L/D Ratio: 20:1 – 24:1 (PET Special)
Heating Power: 15.6 – 19 kW ● Oil Tank Capacity: 350 L
Machine Weight: Approx. 7.1 – 7.5 Tons

Machine Features:
PET Special Screw – Low-shear plasticizing for high transparency preforms
Servo-Hydraulic Drive – Energy saving with stable pressure control
High Injection Capacity – Suitable for multi-cavity PET molds
Parallel Operation – Charging and mold movement run simultaneously
High Torque Plasticizing Motor – Handles dense PET material efficiently
Smart Touch Controller – Fast response with precise production control
