Call for price

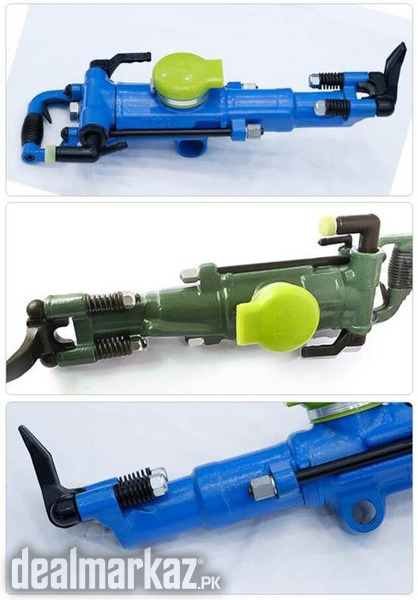

Rock Drill Machine

  LOCATION

Office No 1 Sunset Lane No 1 Building No 24 C Phase 2 EXT DHA Karachi, DHA Karachi, Karachi, Sindh, Pakistan

DESCRIPTION


#rockdrill #rockdrilling Model YT28

PARAMETER

Model: YT28
Cylinder diameter: 80mm
Piston stroke: 60mm
Impact energy: ≥70(0.63Mpa)
Impact frequency of drilling: ≥37(0.63Mpa)
Drilling speed: ≥(0.63Mpa)
Air consumption: ≥81.6(0.63Mpa)
Air pipe inner diameter: 25mm
Water pipe inner diameter : 13(10)mm
Working pressure: 0.63Mpa
Working water pressure: 0.2Mpa
Applicable hole diameter: 34-45mm
Maximum hole depth: 5m
Air consumption/per meter: 10.2×103L/m
Drill rod tail size: H22×108
Working temperature: -30°~+50°
Machine weight: 27.8kg
Dimension: L670×W240×H210mm
