Rs. 325,000

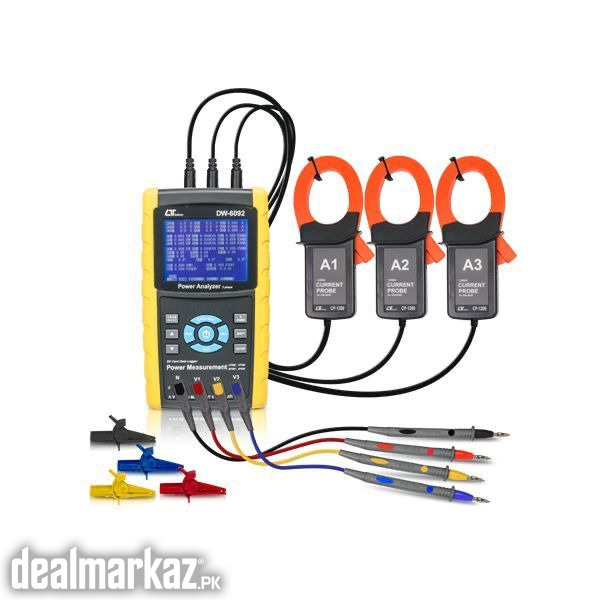

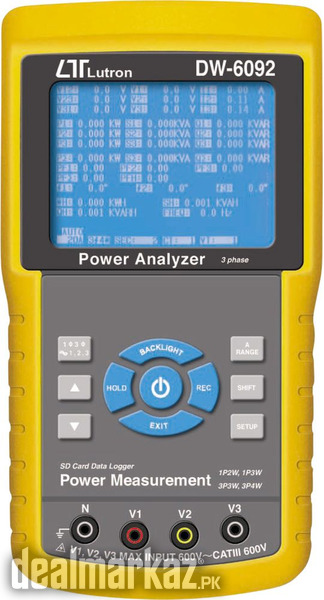

DW-6092 3 PHASE POWER ANALYZER

DESCRIPTION

DW-6092
Description：
SD card real time data recorder,
3 PHASE POWER ANALYZER
Model : DW-6092
* 3 phase/4 wire, 3 phase/3 wire, 1 phase/2 wire, 1 phase/3 wire
* True rms measurement for ACA, ACV.
* True power : W, KW, MW.
* VA, KVA, MVA, VAR, KVAR, MVAR.
* PF (power factor), phase angle.
* KWH, KVAH, KVARH, PFH.
* Voltage measurement range: 10 to 600 ACV
* Current measurement range: 0.2 A to 1200 ACA.
* Programmable CT ratio (1 to 600) and PT ratio (1 to 1000).
* Real time data recorder with SD card.
* RS232/USB computer interface.
* Display all measuring electrical wave shape.
* Patent: Taiwan, China, Japan, Germany, USA pending.
