Rs. 2,500

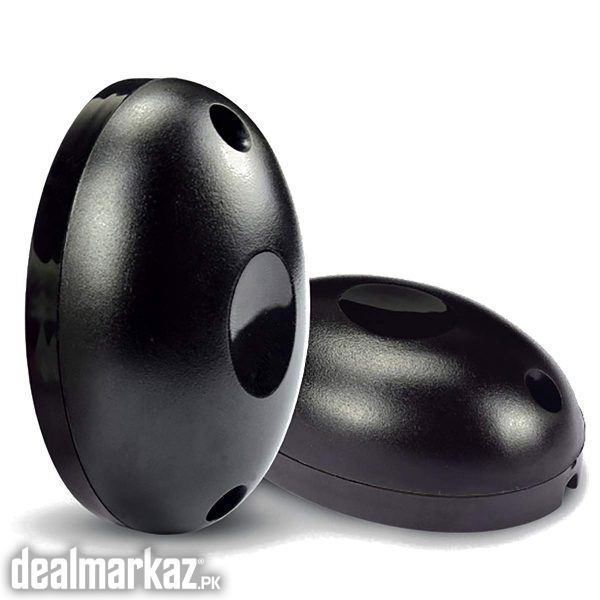

ABO-20L Single Beam Detector Active Half Egg Beam Infrared Detector

Condition: Brand New

DESCRIPTION

Item Parameter
Model ABL-20L
Power supply
DC 10.5V–24V/0.5V
Maximum current
TX: 15mA MAX RX: 30mA MAX
Optical source
Infrared Pulse
Infrared wave length
940nm
Infrared transmission frequency
1.92KHz
Response speed
50ms
Alarm output time
≥1s
Detection mode
Block off the infrared beam
Infrared angle
<±10°
Infrared distance
≤20m
Waterproof level IP55
Relay contact capacity
AC,DC30V,0.5A max
Working environment
Temperature: -25°C-+55°C; Humidity: RH95%
Product dimension
76*49*29mm
